Personnel Transport Vehicle Technical Specifications

Complete Technical Specifications for Personnel Transport Vehicle

Product Name

Personnel Transport Vehicle

Overall Dimensions

2960 × 1850 × 1456 mm

Engine Power

120 kW Cummins

Overall Specifications

Parameter Name	Specification / Model	Parameter Value
Overall Dimensions (L × W × H)	External dimensions	2960 × 1850 × 1456 mm
Cab Type	Operator and passenger cabin	Enclosed cab with sound insulation design
Cabin Dimensions	Driver and passenger cabin	Suitable for personnel up to 180 cm in height
Seating Capacity	Total seats	2 seats (driver + passenger)
Frame Type	Chassis structure	Connected frame, articulated steering system
Axle Configuration	Front and rear axles	Rear axle fixed, front axle with oscillation capability

Cab and Glass Specifications

Parameter Name	Specification / Model	Parameter Value
Cab Design	Operator cabin	Enclosed cab with sound insulation design
Glass Type	All windows	Triple-layer laminated safety glass
Windshield and Side Windows	Front and side glass	Equipped with defogging/deicing system
Driver's Seat	Operator seating	Adjustable seat with shock absorber and safety belt
Passenger Seat	Additional seating	Additional passenger seat provided
Ergonomics	Operator comfort	Designed for personnel up to 180 cm in height

Chassis and Steering System

Parameter Name	Specification / Model	Parameter Value
Frame Type	Chassis structure	Connected frame design
Steering System	Vehicle steering	Articulated steering system
Rear Axle	Fixed axle	Rear axle is fixed in position
Front Axle	Oscillating axle	Front axle with oscillation capability
Towing Hooks	Front and rear	Towing hooks provided at both front and rear
Suspension System	Vehicle suspension	Designed for off-road and uneven terrain

Engine and Power System

Parameter Name	Specification / Model	Parameter Value
Engine Type	Primary power source	Inline 4-cylinder diesel engine
Engine Power	Rated output	120 kW (Cummins engine)
Cooling System	Engine cooling	Liquid cooling system
Fuel Type	Required fuel	Diesel fuel
Engine Configuration	Cylinder arrangement	Inline 4-cylinder configuration
Engine Manufacturer	Engine brand	Cummins

Safety and Additional Features

Parameter Name	Specification / Model	Parameter Value
Safety Belts	Occupant restraint	Safety belts for both driver and passenger
Cab Insulation	Noise reduction	Sound insulation design for reduced noise levels
Glass Safety	Window protection	Triple-layer laminated safety glass
Visibility Features	Window defogging	Defogging/deicing system for windshield and side windows
Seat Safety	Occupant protection	Adjustable seat with shock absorber for reduced vibration
Towing Safety	Vehicle recovery	Front and rear towing hooks for recovery operations

Note: This document contains the technical specifications for the Personnel Transport Vehicle. All parameter values are based on the provided specifications. Additional parameters can be added as needed for specific applications or custom configurations.

Menu

Trending Products

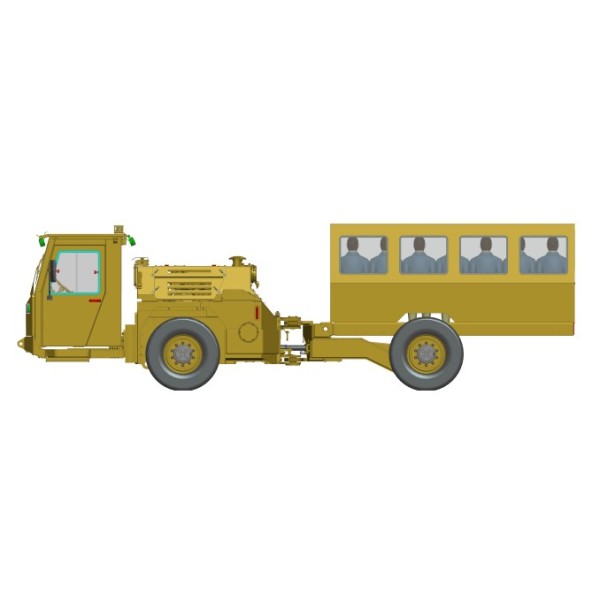

Trackless Personnel Carrier
